尿道膀胱鏡（電切）系統基本配置Cysto-Urethroscopes Basic Configuration
主機系統Host System
1. TJ168C高清內窺鏡攝像機一臺TJ168C HD endoscope camera
2. 醫用加壓器（灌注泵）一臺Medical Pressurizer (Perfusion Pump)
3. 24寸高清液晶監視器一臺24 inch HD LCD monitor
4. 高亮度LED光源一臺High-brightness LED cold light source
5. 導光束一支Light Transmitting Bundle
6. 光學卡口一只Optical interface
7. 豪華全金屬醫用推車一臺Deluxe metal medical endoscope trolley
序號No. | 產品名稱 | Product Name | 規格Dimensions | 數量Quantity |

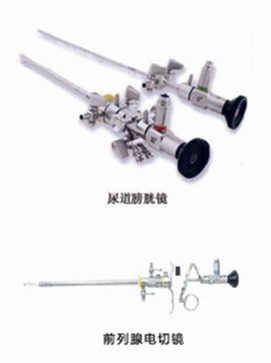

1 | 內窺鏡 | Endoscope | 0°Φ 4mm×302mm | 1 |
2 | 內窺鏡 | Endoscope | 30°Φ 4mm×302mm | 1 |
3 | 內窺鏡 | Endoscope | 70°Φ 4mm×302mm | 1 |
4 | 鞘套及閉孔器 | Sheath and obturator | 15.5Fr×222mm | 1 |
5 | 鞘套及閉孔器 | Sheath and obturator | 19.8Fr×231mm | 1 |
6 | 鞘套及閉孔器 | Sheath and obturator | 21Fr×231mm | 1 |
7 | 鞘套及閉孔器 | Sheath and obturator | 22.5Fr×231mm | 1 |
8 | 操作器 | Operator | 單通道Single channel | 1 |
9 | 連接橋 | Connection bridge | 雙通道Dual Channel | 1 |
10 | 軟性活檢鉗 | Flexible biopsy forceps | 7Fr×390mm | 1 |
11 | 軟性鋸齒鉗 | Flexible toothed clamp | 7Fr×390mm | 1 |
12 | 軟性異物鉗 | Flexible foreign body forceps | 7Fr×390mm | 1 |
13 | 軟性剪刀 | Flexible scissors | 7Fr×390mm | 1 |
14 | 進水接門 | Inlet port | 1 | |
15 | 出水接門 | Outlet port | 1 | |
16 | 光纜 | Optical fiber cable | Φ 4mm×2mm | 1 |
17 | 清潔桿 | Cleaning rod | Φ 3mm×340mm | 1 |
18 | 密封帽 | Sealing cap | 10 |
[注] 因篇幅有限，器械品種較多，詳細了解請垂詢我司或咨詢銷售代表。
[Note] Due to limited space and many types of instrument, please contact our company or consult sales representative for more information and details.
